Pump example data

Here you can find graphs displaying procedure and sample run graph data.

Have a technical issue? Contact support or access online troubleshooting

Overview of typical graphs during method execution

With these exemplified pump graphs, you can see the different steps highlighted during the standard “100 Samples per day” chromatographic method on an Evosep One system using the EV1064 endurance column.

Figure 1: ABCD pump” and “Actual flow rates [µl/min]

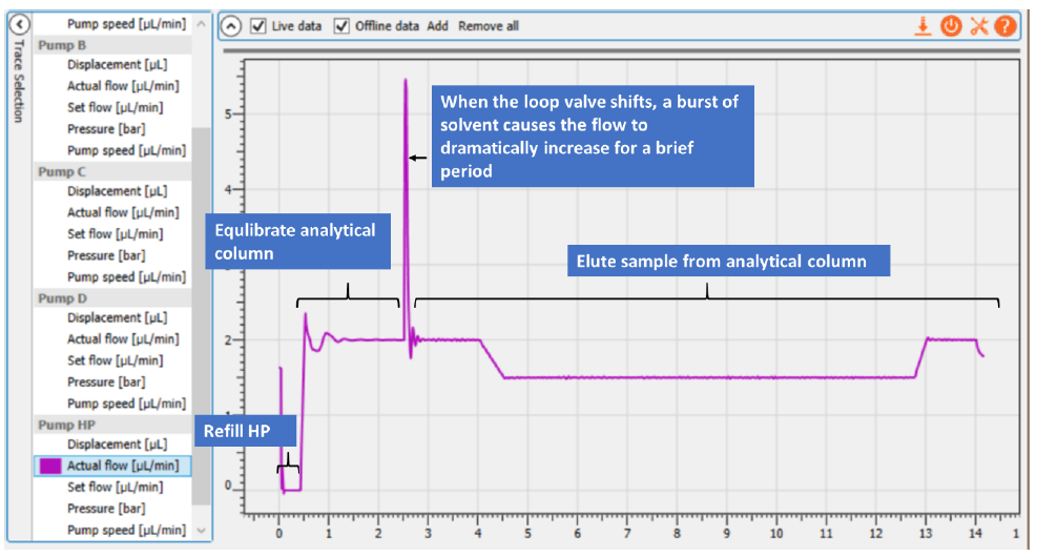

Figure 3:HP pump” and “Actual flow rates [µl/min]

Figure 2: ABCD pump” and “Pressure [bar]

Figure 4: HP pump” and “Pressure [bar]”

300 samples per day method
Gradient and sample HP pump pressure and flow profiles

With these graphs, you can see the gradient HP pump pressure and flow during the standard “300 Samples per day” chromatographic method on an Evosep One system using the EV1107 endurance column.

Gradient

Pump HP pressure

Pump HP Flow

200 samples per day method
Gradient and sample HP pump pressure and flow profiles

With these graphs, you can see the gradient HP pump pressure and flow during the standard “200 Samples per day” chromatographic method on an Evosep One system using the EV1107 endurance column.

Gradient

Pump HP pressure

Pump HP Flow

100 samples per day method
Gradient and sample HP pump pressure and flow profiles

With these graphs, you can see the gradient HP pump pressure and flow during the standard “100 Samples per day” chromatographic method on an Evosep One system using the EV1064 endurance column.

Gradient

Pump HP pressure

Pump HP Flow

60 samples per day method
Gradient and sample HP pump pressure and flow profiles

With these graphs, you can see the gradient HP pump pressure and flow during the standard “60 Samples per day” chromatographic method on an Evosep One system using the EV1064 endurance column.

Gradient

Pump HP pressure

Pump HP Flow

30 samples per day method
Gradient and sample HP pump pressure and flow profiles

With these graphs, you can see the gradient HP pump pressure and flow during the standard “30 Samples per day” chromatographic method on an Evosep One system using the EV1106 endurance column.

Gradient

Pump HP pressure

Pump HP Flow
