MS Connections
The Evosep One system is supplied with connection to one MS and one ion source of choice. If you are looking for additional connection kits, the overview is listed here and detailed below.

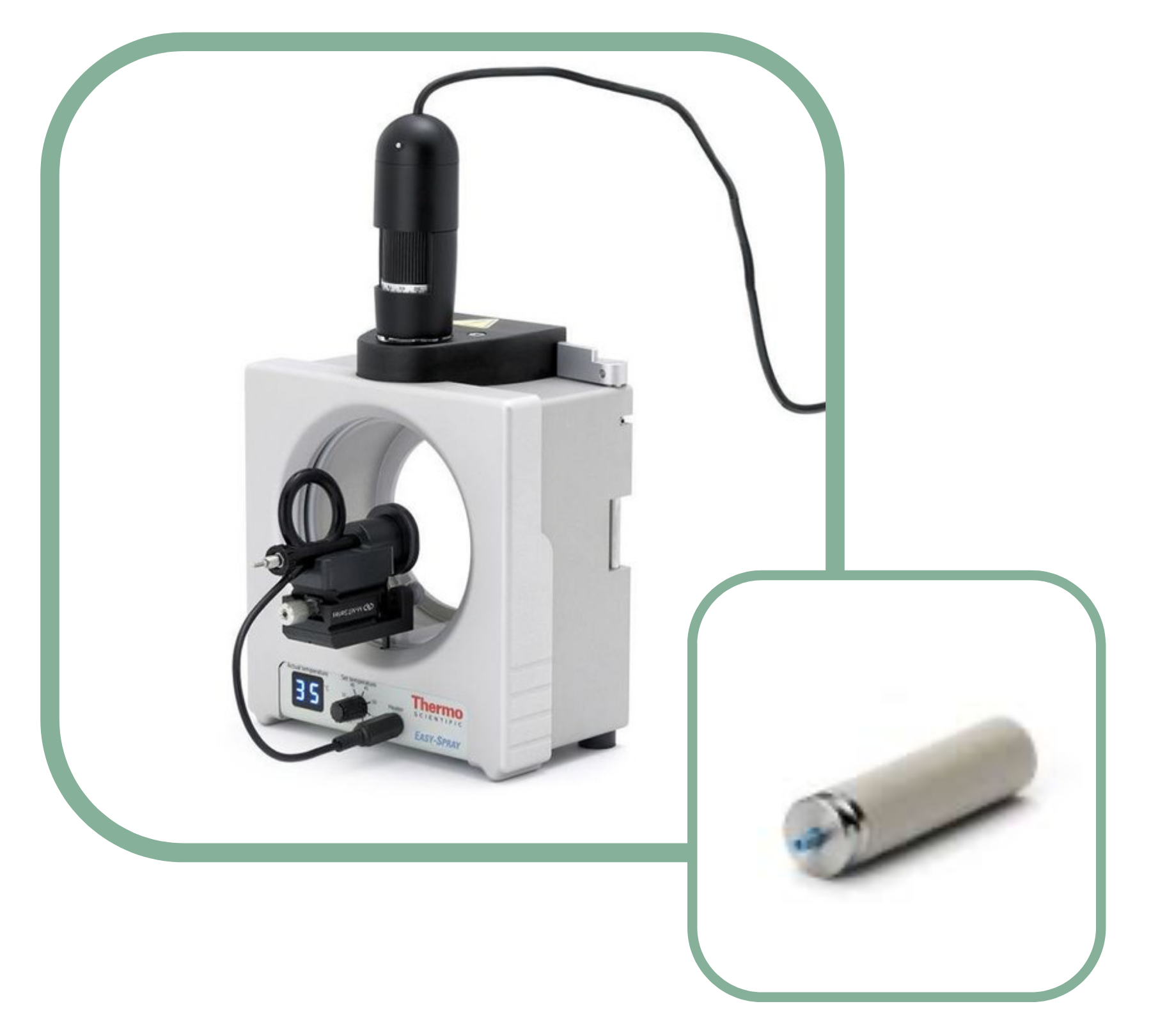

Thermo EASY-Spray
The Thermo Scientific EASY-Spray adapter (EV1072) connects the analytical focusing column to a replaceable emitter with an integrated ZDV liquid junction inside the high-voltage click and spray mechanism.
It is used with the Thermo Scientific EASY-Spray ion source (ES081, ES082) and Evosep emitters (EV1086, EV1087 and EV1111).

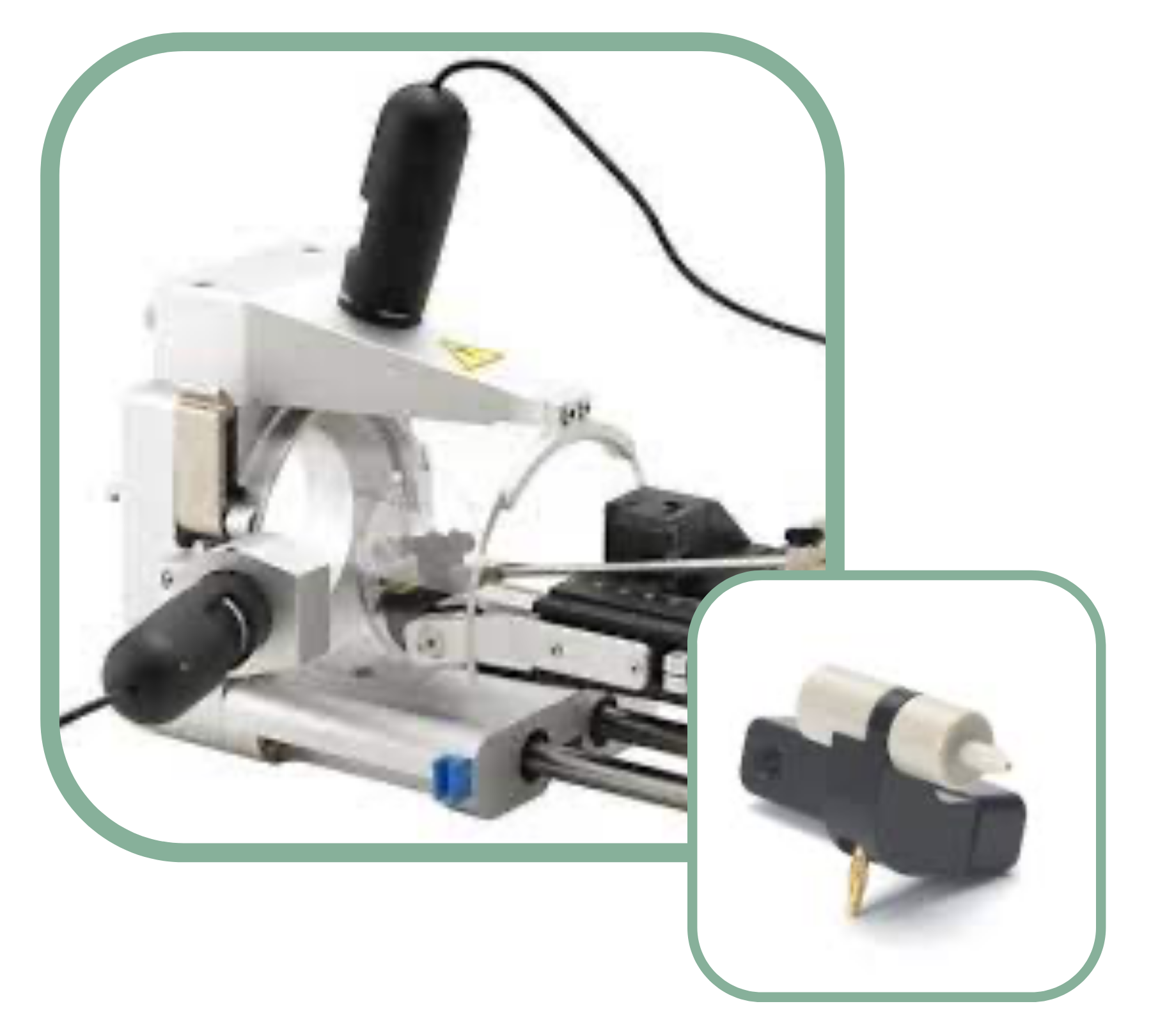

Thermo Nanospray Flex
The Thermo Scientific Nanospray Flex adapter (EV1085) connects the analytical focusing column to a replaceable emitter with an integrated ZDV liquid junction.
It is used with the Thermo Scientific Nanospray Flex ion source (ES071, ES072) and Evosep emitters (EV1086, EV1087 and EV1111).

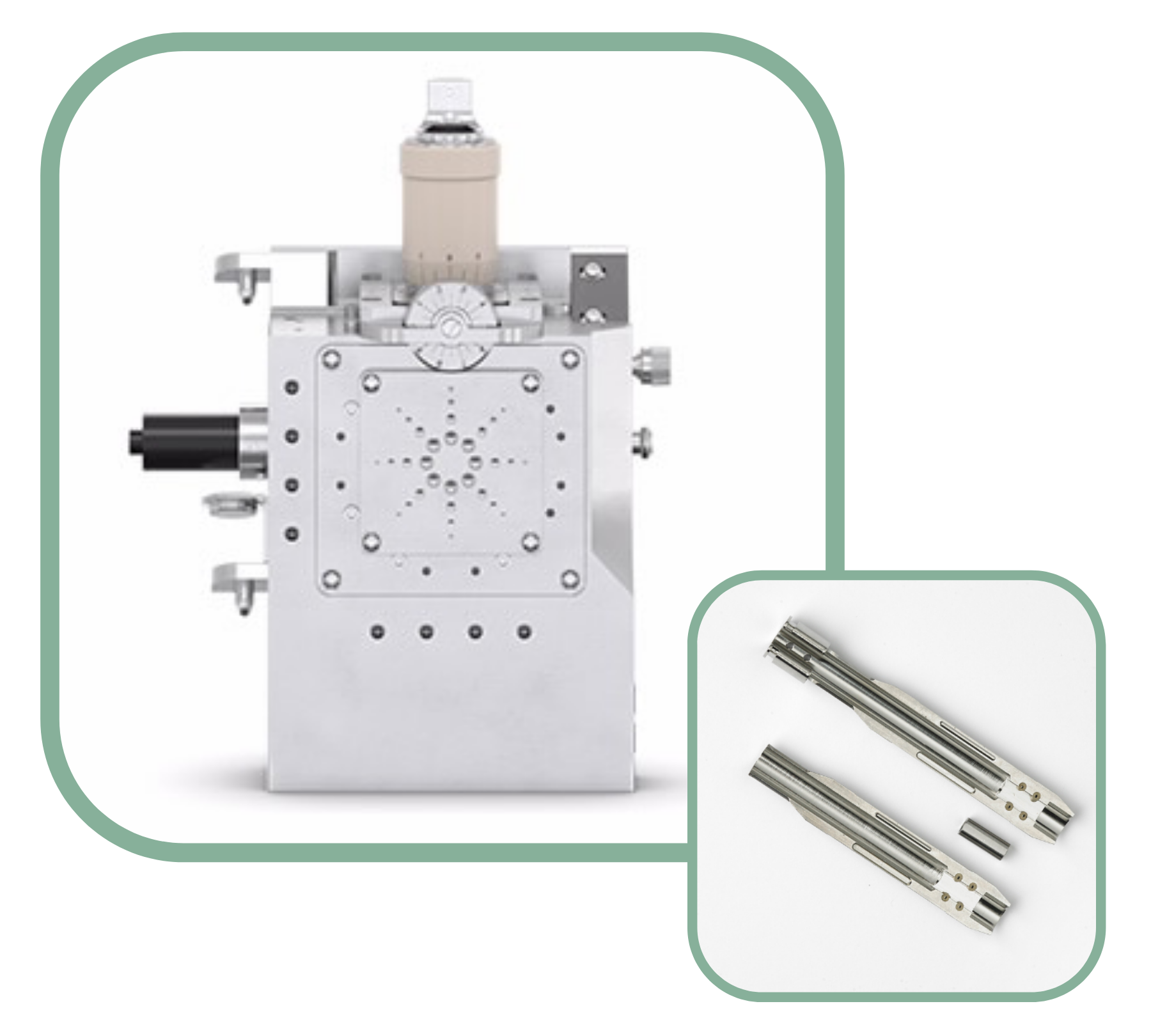

Agilent nanoESI
The Agilent sleeve adapter (EV1116) connects the analytical focusing column to a replaceable emitter with an integrated ZDV liquid junction inside the Nanodapter sleeve.
It is used with the Agilent Nanospray ion source (G1992A) and Evosep metal emitter (EV1117). An Agilent Nanoadapter kit containing both the sleeve adapter and the metal emitter can be ordered (EV1130).

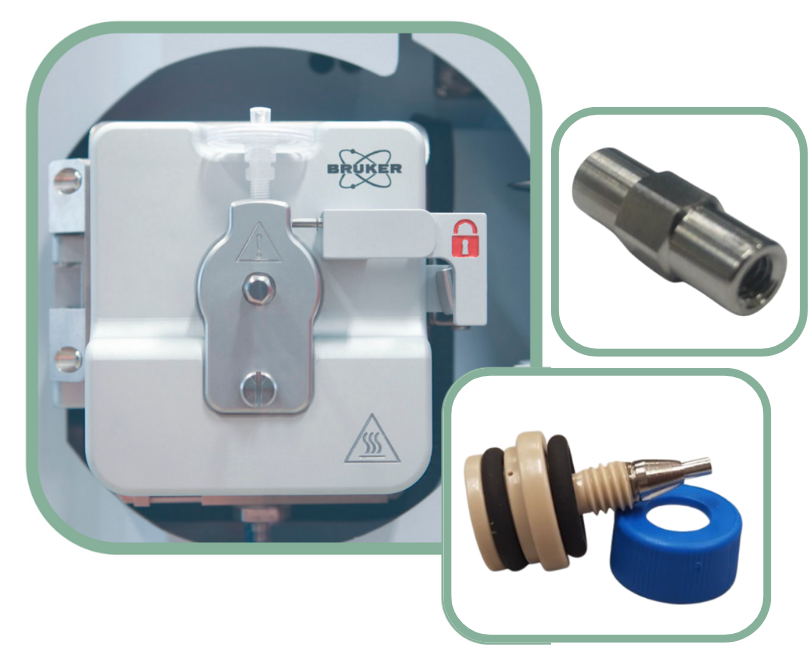

Bruker Captive Spray
Captive spray emitters are bought through Bruker and fits our analytical columns (1865710 Captive Spray Emitter (ZDV) 20 µm ID, 8204500 Stainless steel union (1/16″-through-hole union with hex handle) and 1865691 Captive Spray Emitter (ZDV) 10 µm ID).

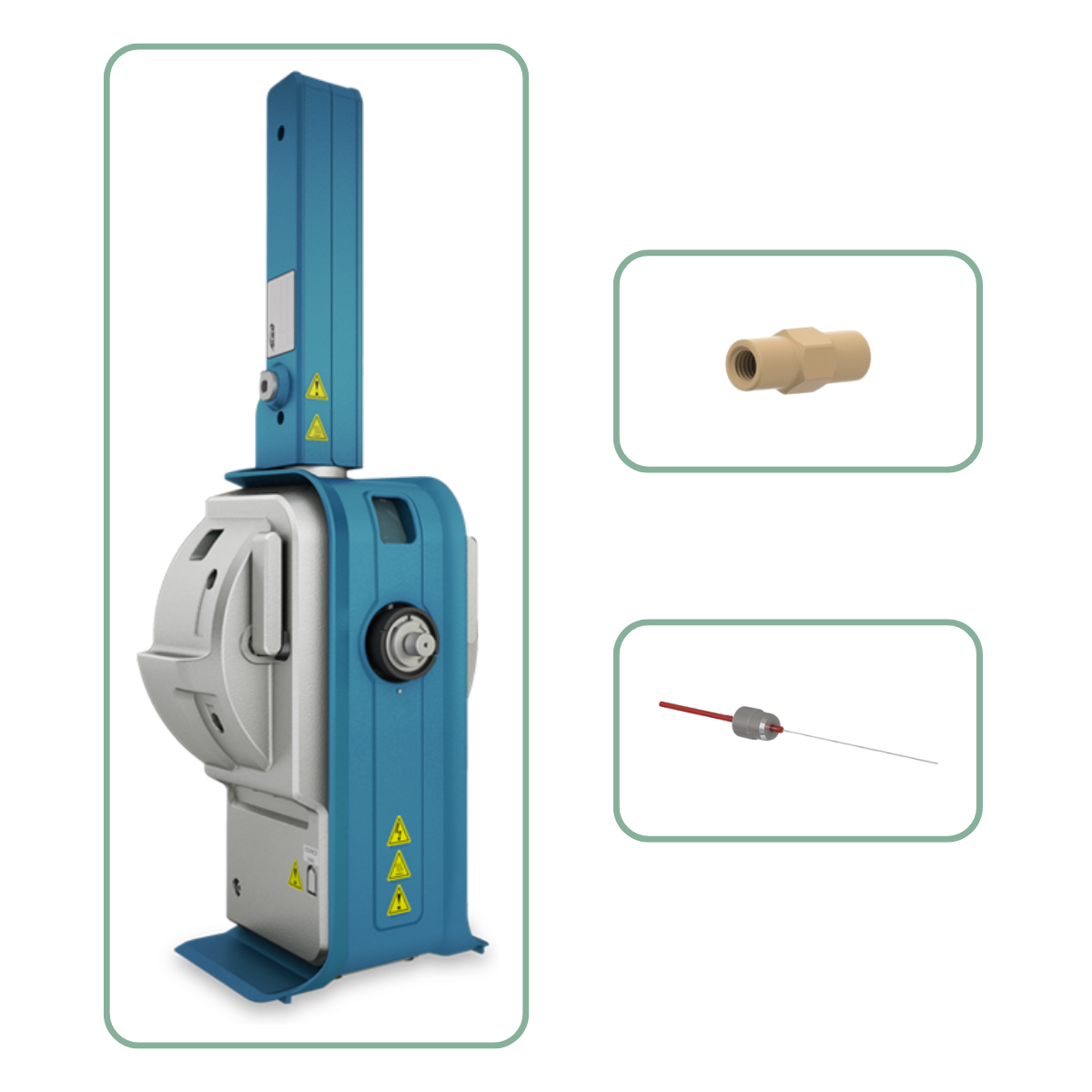

Sciex OptiFlow
The Evosep One is compatible with the SCIEX OptiFlow™ Turbo V ionization source. The Evosep columns for Standard Methods require SteadySpray Electrode Emitters available from SCIEX (5061574 SteadySpray Electrode Low Micro 1-10µL/min) and a NanoTight Union (IDEX P/N P-779-01).
